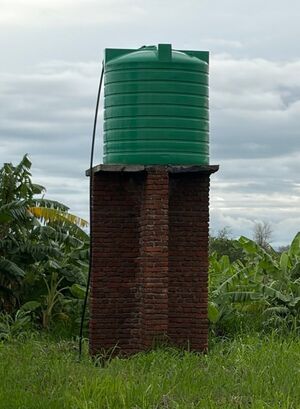

[[File:Water tower malawi brick 5000l 00.jpg|thumb|Water Tower Malawi Brick 5000 L]] | |||

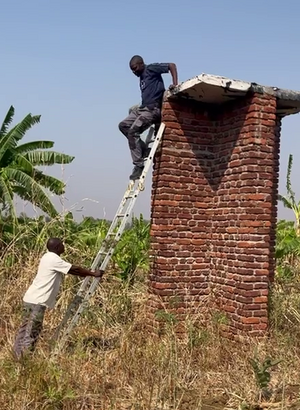

[[File:Water tower malawi brick 5000l 01.png|thumb|Water Tower Malawi Brick 5000 L]] | |||

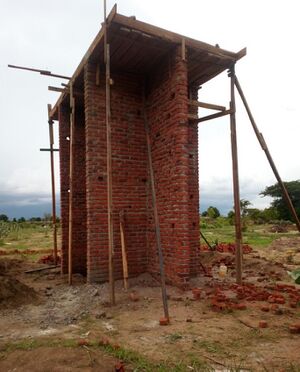

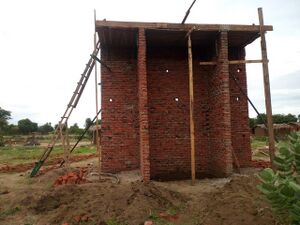

[[File:Water tower malawi brick 10000l twin 00.jpg|thumb|Water Tower Malawi Brick 10000 L Twin]] | |||
[[File:Water tower malawi brick 10000l twin 01.jpg|thumb|Water Tower Malawi Brick 10000 L Twin]] | |||
== Functional Purpose == | == Functional Purpose == | ||
Revision as of 02:57, 2 April 2026
AOWIS Reference Implementation: 5 m Brick Water Tower with 5,000 L nylon tank. Designed for simple, locally-buildable construction using available materials.
This blueprint is non-normative and intended as a practical, low-tech reference for local water infrastructure.
Functional Purpose
- Store 5,000 L of water in a tank elevated ~5 m for gravity-fed irrigation
- Provide reliable water supply without requiring specialized equipment
- Integrate optionally with AOWIS Field Controllers for water level monitoring
Structural Concept
- 5 m high brick tower in simple cross/X pattern for stability
- Supports a standard 5,000 L nylon tank (locally available)
- No specialized engineering required - buildable with local skills
- Open-top tank for inspection and filling
- Mobile Ladder or simple access for maintenance if needed
Hydraulic Layout
- Tank outlet supplies outlets, homes, irrigation zones by gravity
- Minimum water level need to be maintained for stability, especially during strong winds
- Isolation valve allows manual control
- Optional integration with a small pump for secondary supply zones
Safety Considerations
- Basic stability ensured by the cross/X brick pattern
- Keep tank weight within reasonable limits (full tank ~5 tons)
- Ladder and hatch should be used carefully and protected to be accessed by children
- Empty or near-empty tanks are more susceptible to wind forces; take care during strong wind events
- Ensure tank straps, brackets, or anchoring to the frame are installed and checked regularly
- Basic manual valve operations keeps it operational during brownouts
Manual Operation Pathways
- Tank filling and emptying can be done manually if electronics fail
- Simple paper-based logs or measurements supported
Controller Integration Points
- Optional water level sensor for Field Controller logging
- AOWIS control can read tank level for irrigation scheduling
- Controller can enforce a minimum water level to ensure the tank remains gravity-stable against wind forces
- Controller may connect to global weather forecasts when internet is available
- High wind or storm warnings trigger alerts to the operator
- Controller can temporarily fill or maintain tank level to prevent tipping during forecasted high winds
- Irrigation may be suspended or modified to reduce risk to infrastructure
- Manual bypass always available - water supply continues even if electronics are offline
Versioning Note
- This design is so simple and locally adaptable that traditional versioning practically does not apply
- Builders may adjust dimensions, brick patterns, or tank placement according to local materials and skills
- Basic stability and functional operation should be maintained
